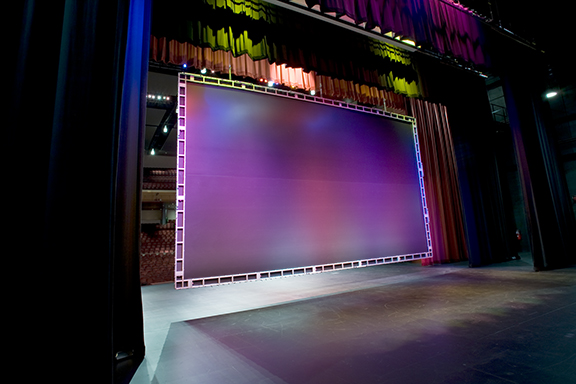

While 100-foot-plus wide screens are impressive, big sizes can mean big headaches.

The award-winning StageScreen modular screen was designed to be among the strongest truss-style screens on the market. Though the 8” truss-style product is very strong vertically, it is less strong in the horizontal plane due to its I-Beam construction. So when it is lifted off the ground from fly points, the frame will arch until it is vertical.

There are a couple of ways to minimize the arching when raising a flown screen from the ground. Adding doubled-up “stiffener bars” across the top will provide additional support to the joints and give an added safety factor once the screen is in position. This is especially necessary when fly points (where fly cables attach to the screen frame) are spaced 12’-18’ apart. We don’t recommend fly points be further than 18’ apart on the StageScreen.

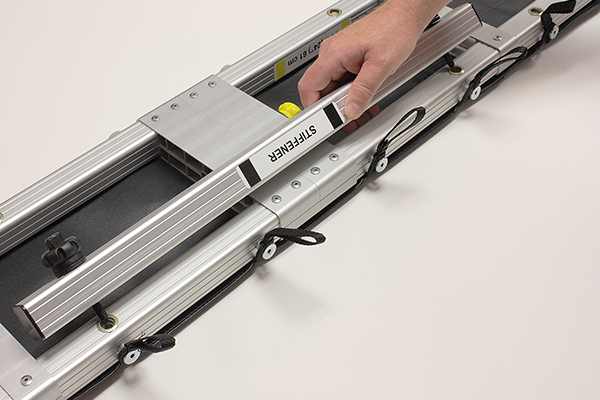

Frame pieces should be wrench-tightened if possible, but stiffener bars should only be hand tightened. Once the screen is vertical, some frame pieces may bow forward or backward. You can push on the joint in the opposite direction of the bow and hand tighten the stiffener bars at the same time to take out the bow.

Another tip is to build the frame in the vertical position, instead of building it on the floor then hoisting it vertical. If lift points drop all the way to the floor, the upper horizontal frame can be attached at shoulder height and fabric can be attached along the top of the frame. By raising the screen a little bit at a time, installers can build the frame sides and hook the viewing surface as the screen is lifted into the air. The only potential problem to watch for with this method is someone stepping on the viewing surface and leaving a big, dirty boot print. This approach is faster and eliminates the arch in lifting. It’s also a real knee-saver for installers!
