Flat panel LCD and LED screens have become ubiquitous in modern life. They play a role in digital signage, wayfinding, entertainment, retail, and many other applications.
As part of Draper’s AV mounts and structures initiative we have developed custom solutions for LED videowall projects. Now we are also adding a series of standard products for wall mounting LCD flat panels.

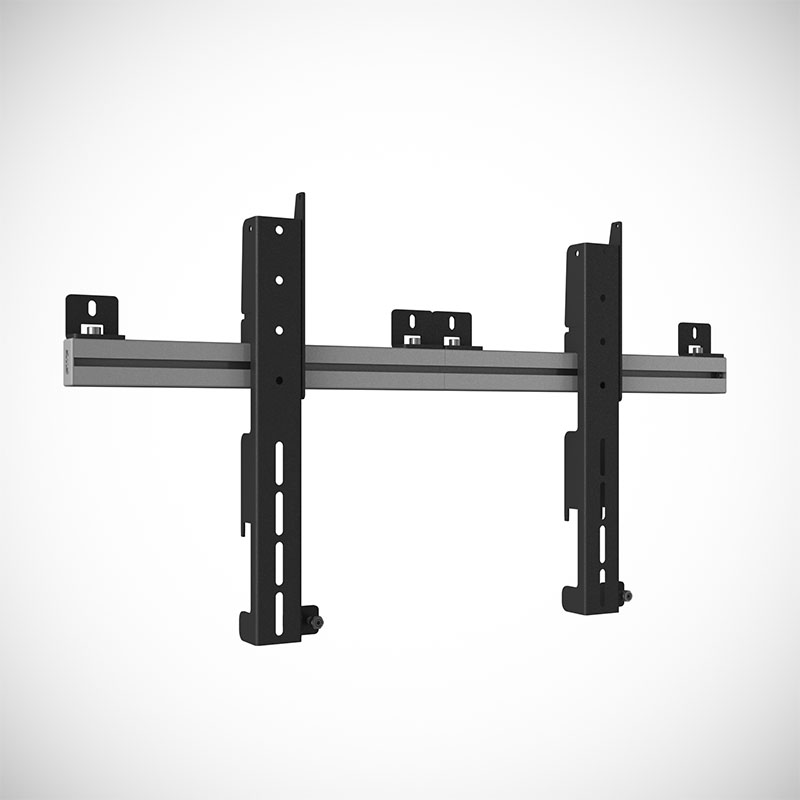

Video Wall Mount
The Video Wall Mount is a simple and cost-effective solution, whether mounting a single display or building video wall arrays in unique configurations. Fine X/Y/Z axis adjustments provide precise display alignment in all four corners without the need for tools. Height and width can be adjusted with millimeter precision for edge-to-edge mounting. The final result is closer to the wall than most other products on the market. The Video Wall Mount supports VESA patterns from 100 x 400 high x unlimited width. For more information, including how to buy, click here.

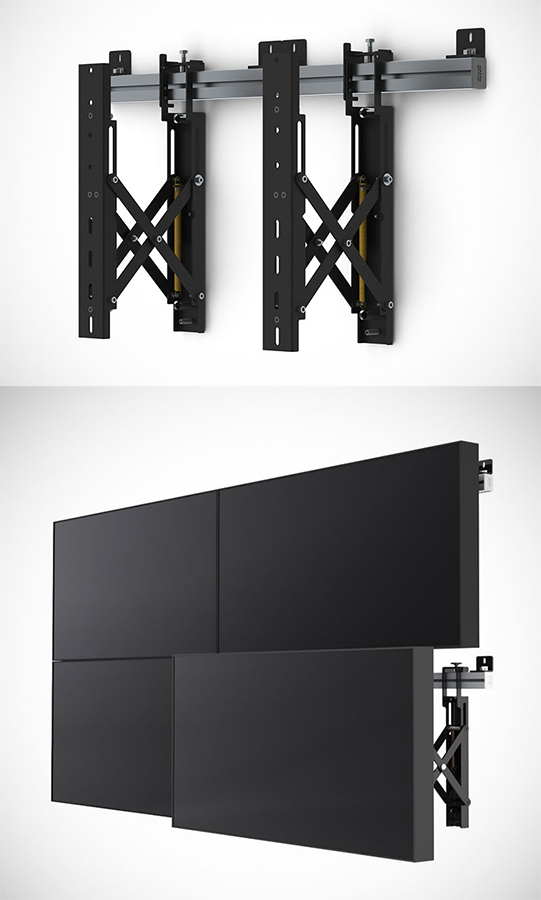

Extendable Video Wall Mount
The Extendable Video Wall Mount provides easy access for service or exchange. There is no need to remove other displays to replace or service one in the array, saving time and money. Each mount contains a spring-mounted extension mechanism to move the display out away from the wall. Fine adjustment capabilities with millimeter precision provide perfect display alignment and edge-to-edge mounting. The Extendable Wall Mount supports VESA patterns from 100 x 400 high x unlimited width. For more information, including how to buy, click here.

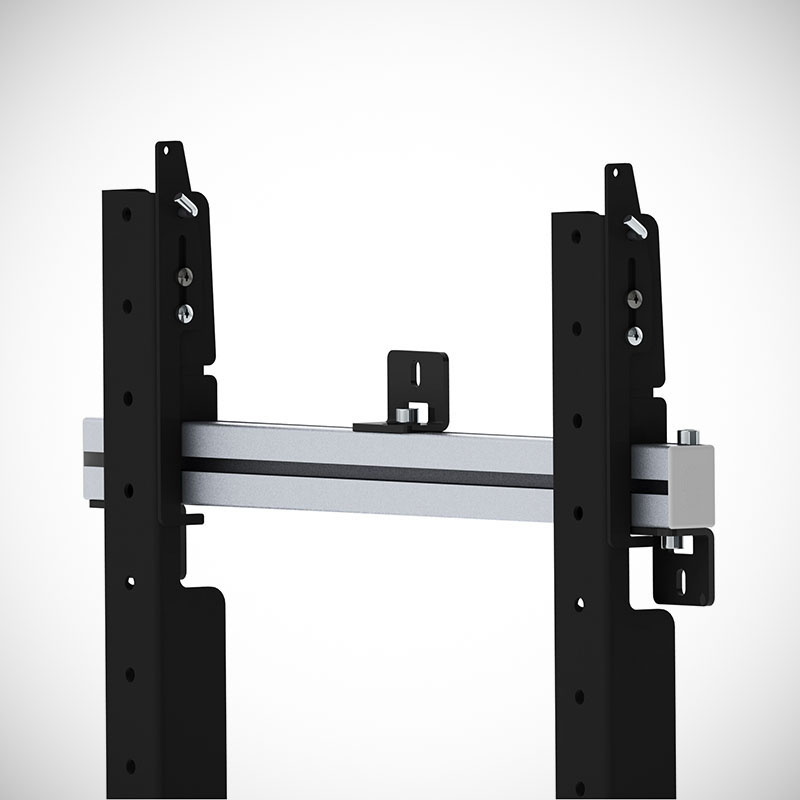

Portrait Video Wall Mount
This version of the aforementioned Video Wall Mount is an easy, simple way to construct a video wall array with displays in portrait configuration. The same fine X/Y/Z axis adjustment capabilities provide precise alignment in each corner of the display and height and width adjustments can be made with millimeter precision. The Portrait Video Wall Mount supports VESA patterns from 300 x 100 to 900 x 400. For more information, including how to buy, click here.

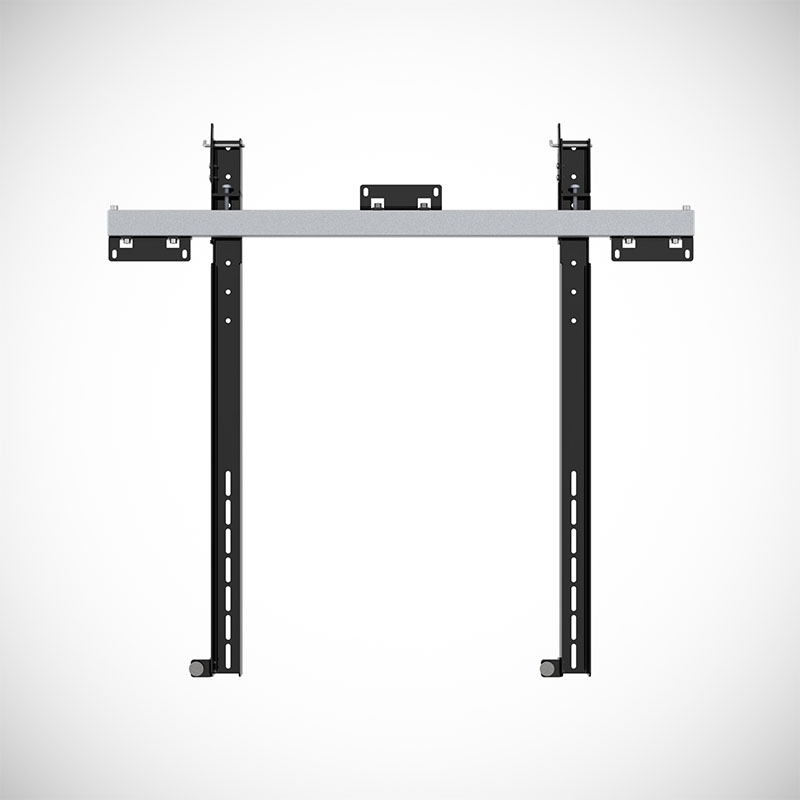

XL Video Wall Mount
The XL Video Wall Mount’s modular design provides easy and secure mounting of LCD displays from 72″ to 96″ diagonal in either landscape or portrait orientation. Fine X/Y/Z axis adjustment capabilities provide precise display alignment in all four corners, making fine adjustment of rows easier. Height and width can be adjusted with millimeter precision for edge-to-edge mounting. The XL supports VESA patterns from 300 x 300 to 900 x 900. For more information, including how to buy, click here.

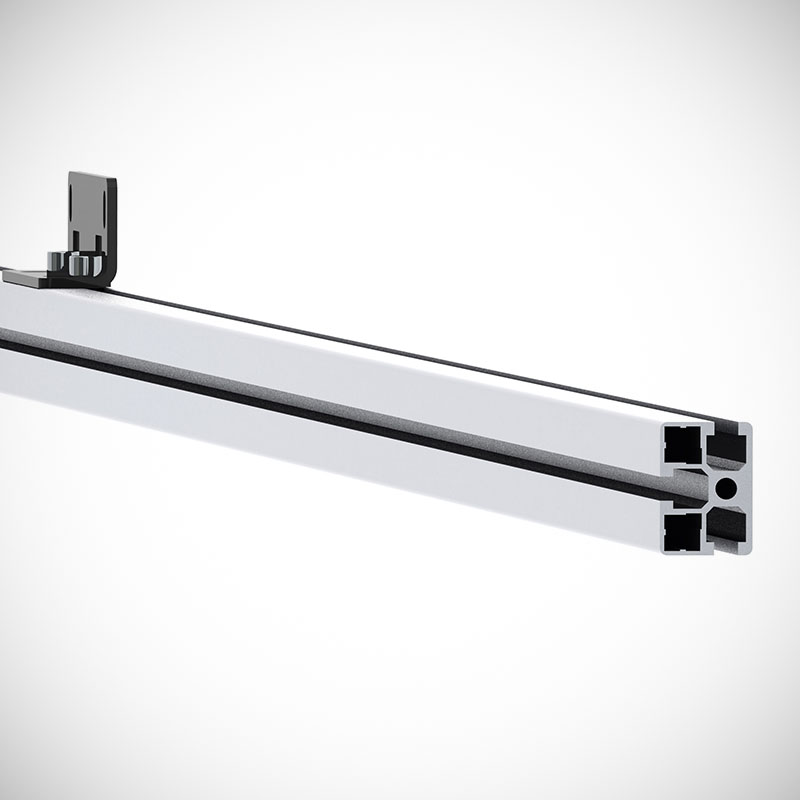

Multi Display Wall Rail
The Multi Display Wall Rail simplifies mounting by utilizing a single 78.75″ rail instead of multiple rails for extra fast and accurate mounting. This provides a single installation with a continuous level mounting point for all displays in the row. One long rail allows for easier leveling of multiple displays within a row. These aluminum wall rails can be cut to desired length in the field and combined. Attractive endcaps provide a nice finish. The Multi Display Wall Rail can be used with any of the video wall mount series. For more information, including how to buy, click here.
Each new mount can be secured with screws (included) or with padlocks (not included) to increase public safety and reduce the risk of theft.
Don’t see what you need? Click here to contact your Draper representative about our core, advanced, and custom AV mounting solutions.
